The Original:
Name SdKfz 173 Panzerjaeger V "Jagdpanther", early version
Type Heavy Tank Destroyer Built by MIAG, MNH
Crew 5 Men Length 9.88 m
Capacity 700 PS Width 3.42 m
Weight 45,5 t Height 2.72 m
Speed 46 km/h
Maximum Armor Front Side Rear Top
Turret 100 mm 50 mm 40 mm 17 mm
Hull 60 mm 60 mm 40 mm 30 mm
Armament 1 x 8.8 cm PaK 43/3 L/71 (60 Rounds)
1 x 7.92 mm MG 34 (600 Rounds)
Numbers Built 392 from January 1944 to March 1945
Remarks Development of the Jagdpanther began in October 1942 and by October 1943 the first prototype was presented.
The production began in January 1944.
Manufacturer: Dragon 6458 Jagdpanther Ausf. G1 Early Production
Detail Sets: Aber 35244 - Photo etched parts
Aber 35222 - Fenders
Aber 35223 - Sideskirts
Aber 35L-63 - MG Barrel
Aber R-14 - Shackle
Armorscale B35-025 - Gun Barrel
ATAK 35043 - Zimmerit
Moskit 35-03 - Exhaust
Voyager Model PEA 070 - Cleaning rod bin
WWII Productions 35001 - Tracks



Remarks:

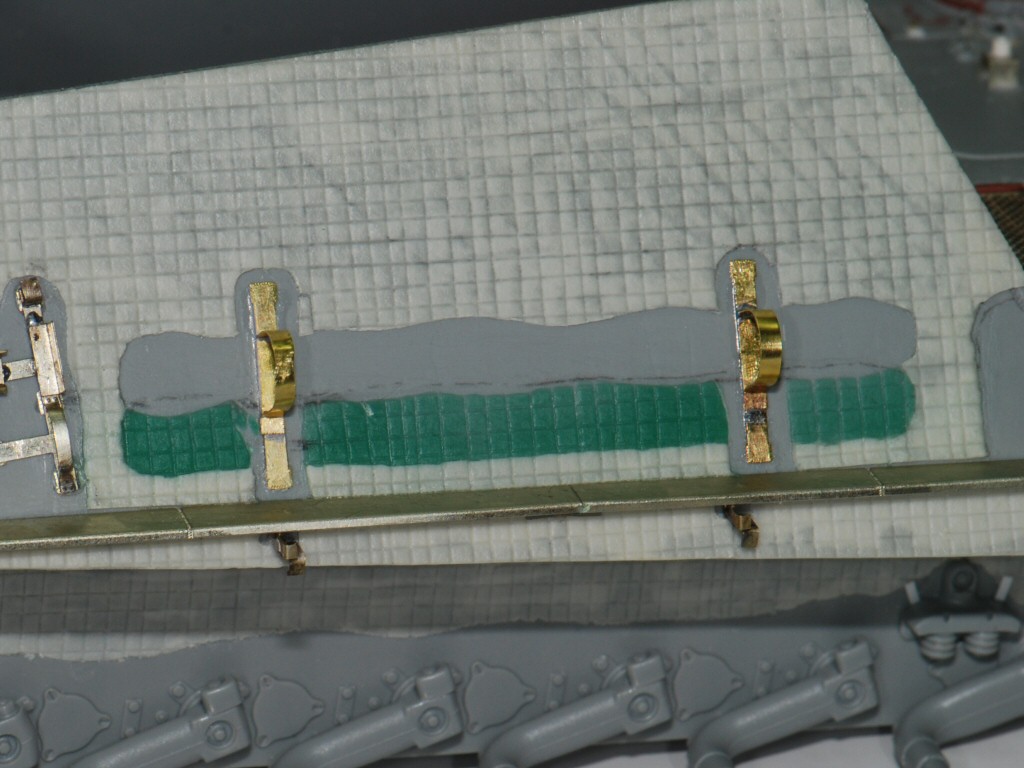

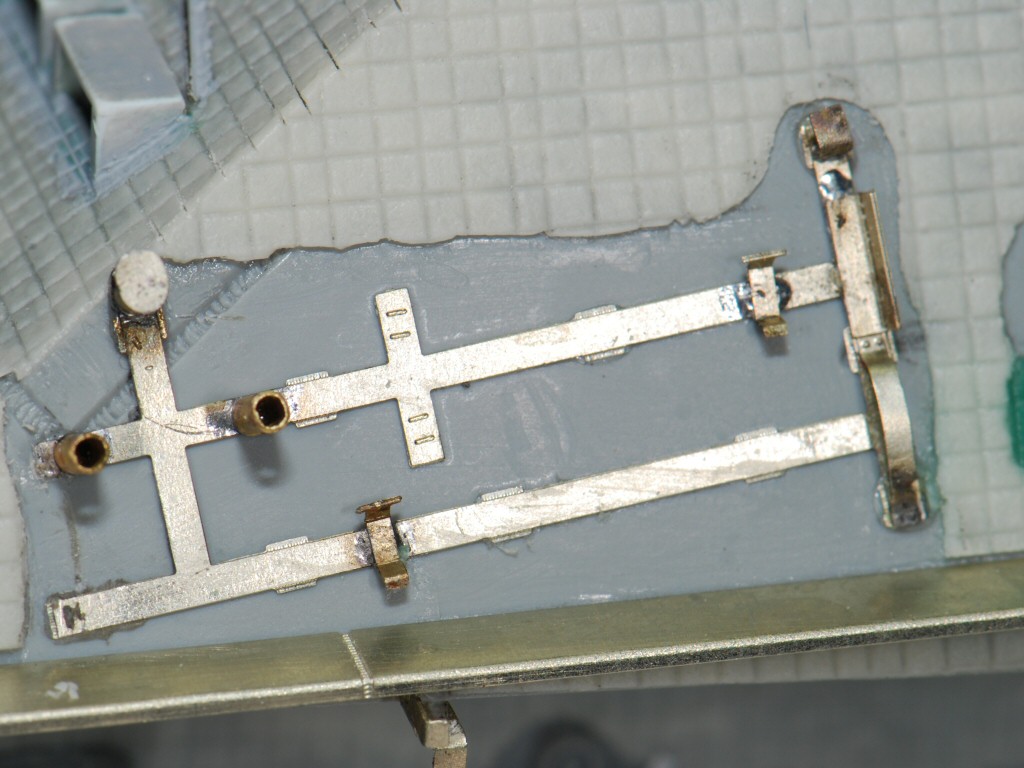

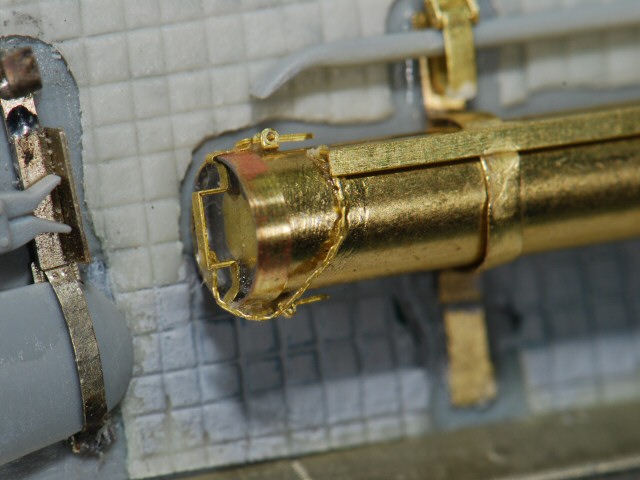

Click on the thumbnail to open a new windowOn the first Jagdpanthers the tool racks on the left side were mounted a bit tilted to give enough room for the shovel. Click on the thumbnail to open a new windowThe kit's intended position for the gun cleaning rod bin was too low so I altered the position. The missing Zimmerit was then re-applied with wax.

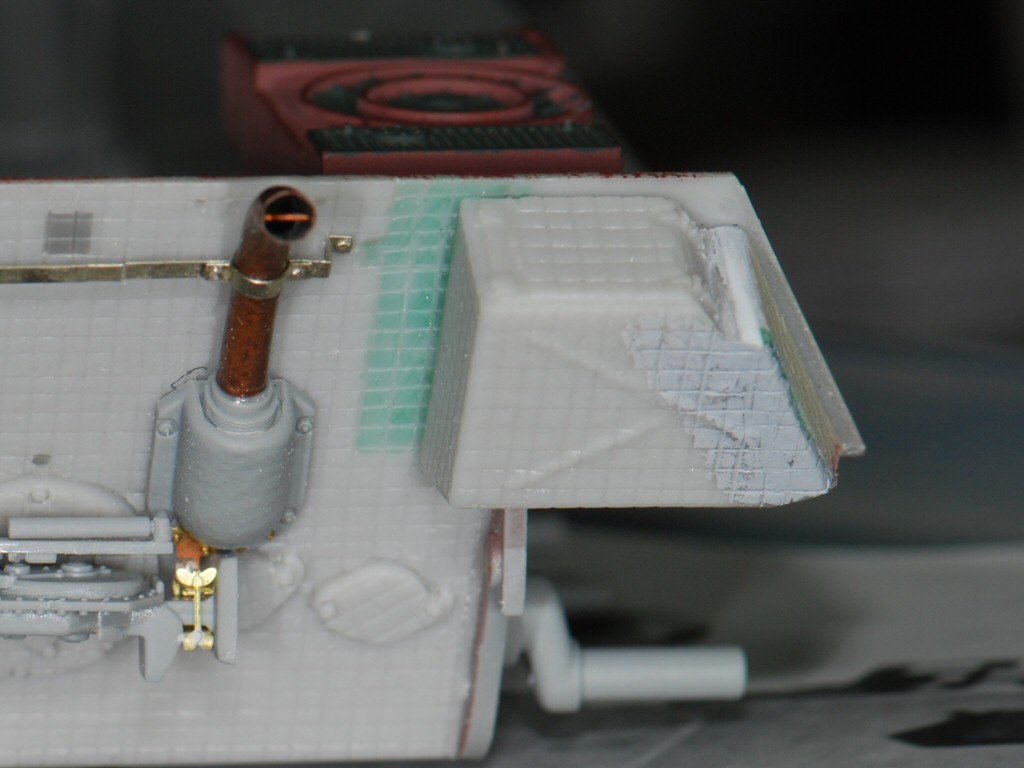

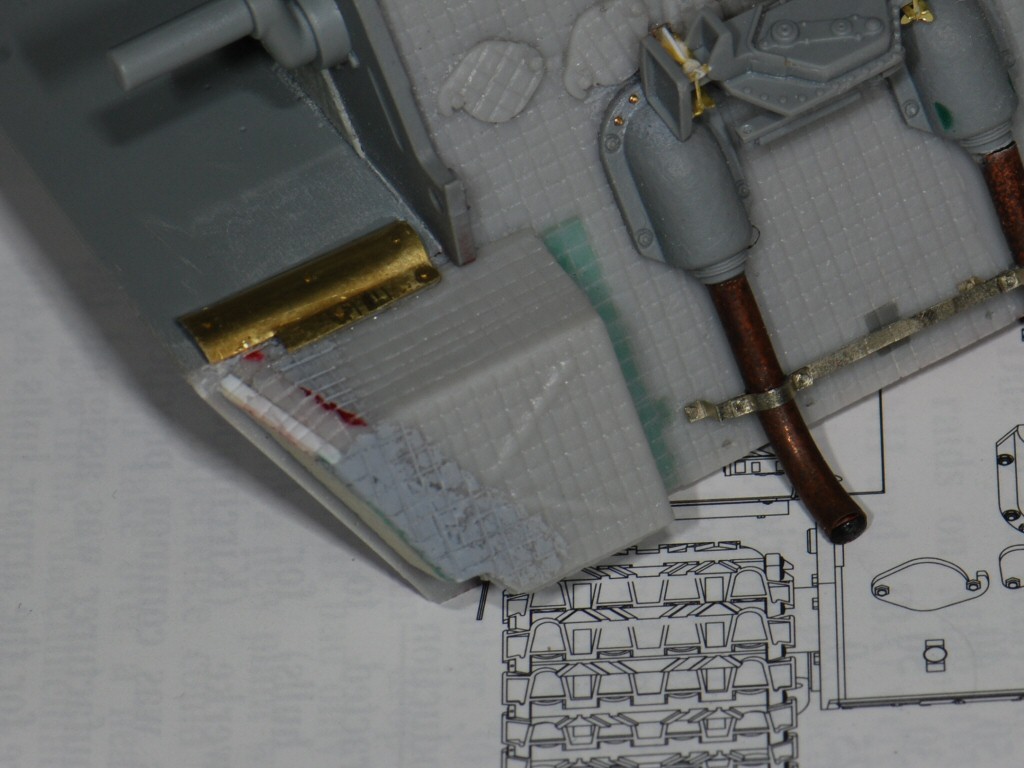

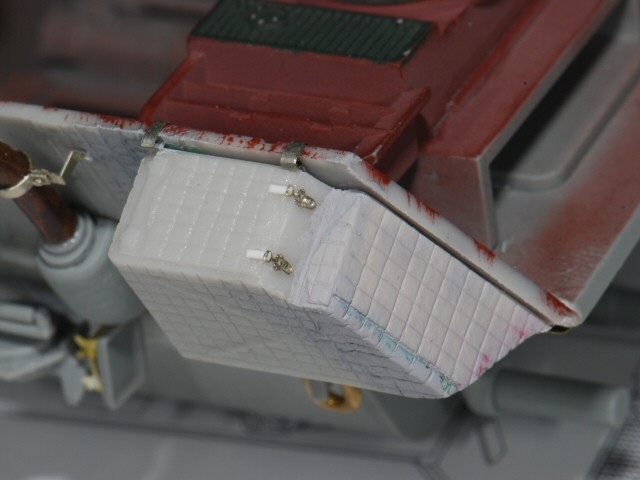

Click on the thumbnail to open a new windowInitially the Jagdpanthers were equipped with rear stowage bins from the Panther Ausf. A so I corrected this. Click on the thumbnail to open a new windowI also detailed the lower mountings for the rear stowage bins.

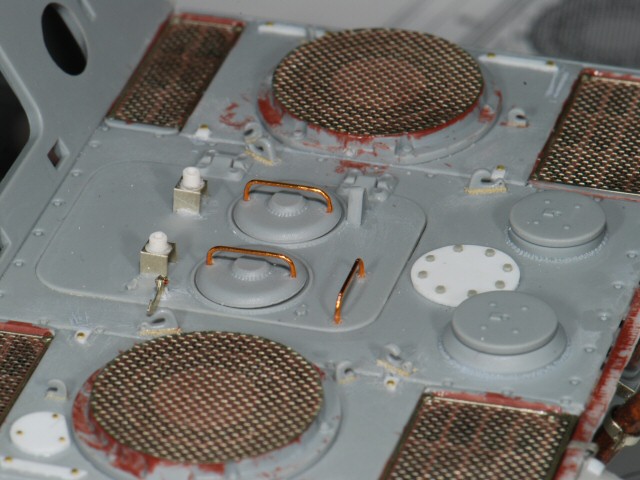

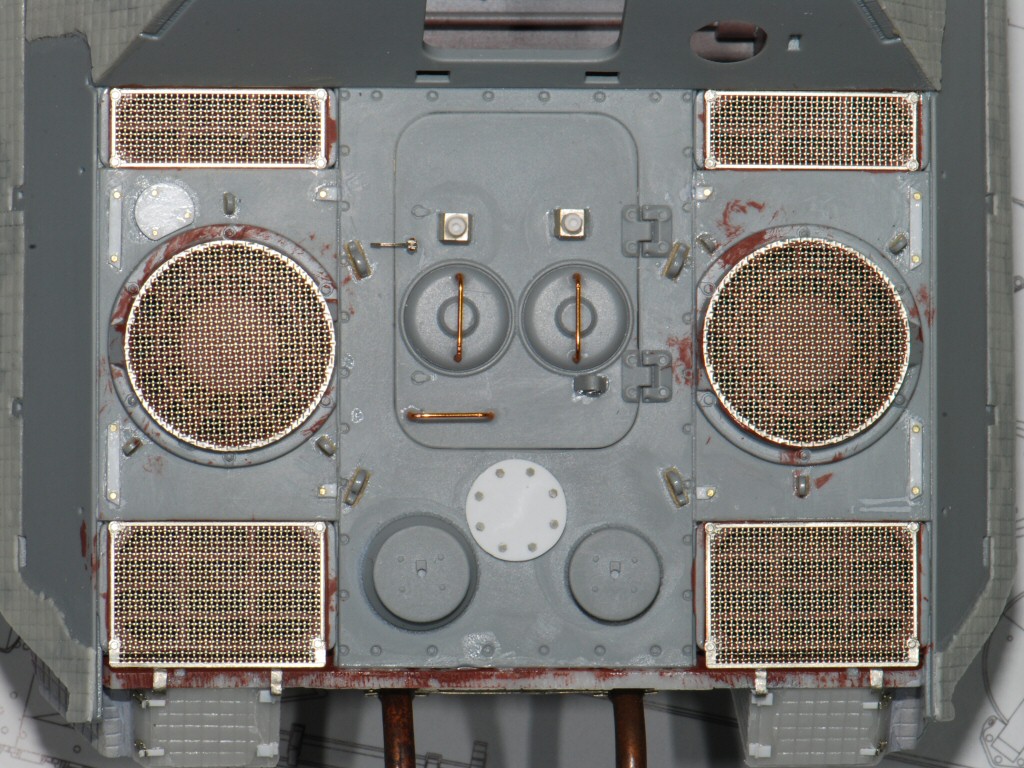

Voransicht anklicken, um große Ansicht in neuem Fenster zu öffnenI added the covers for the antennamount and for the deep-fording snorkel.. Also I added smaller details like mounts for the smaller covers and some handles.

Details:

Click on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame below
Click on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame belowClick on the thumbnail to open the picture in the frame below

The Model:
